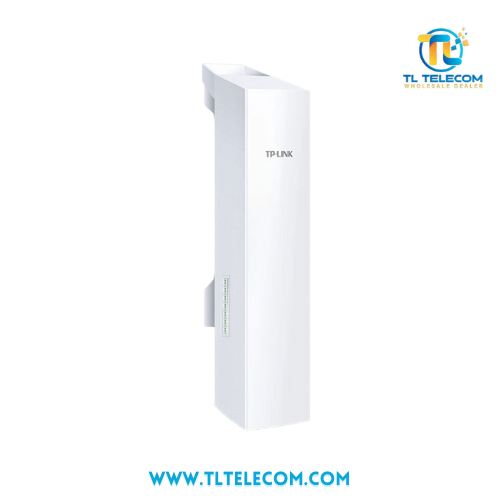

TP-Link CPE220 2.4GHz 300Mbps High Power Outdoor
| Regular Price | 5,590.00৳ |
| Status | Out Of Stock |
| Product Code | P00240 |
Specification
| Main Feature | ||
|---|---|---|
| Antenna | Built-in 12dBi 2x2 Dual-polarized Directional Antenna Beam Width: 60° (H-Plane) / 30° (E-Plane) Note: For more details, please refer to datasheet | |
| Button | Remote Reset Button | |
| CPU | Qualcomm Atheros 560MHz CPU, MIPS 74Kc | |
| Ram | 64MB DDR2 RAM, 8MB Flash | |
| Temperature | Operating Temperature: -40°C~70°C (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing | |
| Dimensions | 85.8×43.9×31.9 mm | |
| Power | ||
| PoE in | 1 10/100Mbps Shielded Ethernet Port (Passive PoE in) | |
| PoE in input Voltage | 100-240VAC, 50/60Hz | |
| Power consumption | 10.5 Watts Max | |
| Network | ||
| Wireless Rate | Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) | |
| Wireless frequency | 2.4~2.483GHz | |
| Wireless standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) | |
| Ethernet | 1x 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1x 10/100Mbps Shielded Ethernet Port (LAN1) | |
| Wireless Security | WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption | |
| Others | Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog | |
| Manufacture Warranty | ||
| Warranty | 01 Year Warranty | |
Description
TP-LINK’s 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220, is dedicated to cost-effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint, and outdoor Wi-Fi coverage applications. Professional performance, coupled with a user-friendly design, makes CPE220 an ideal choice for both business and home users. With Qualcomm Atheros enterprise-level chipsets, high-gain antennas, and high-quality material, a specially designed enclosure, and a PoE power supply, CPE220 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158⠉). Specially designed for outdoor use, ideal for long-distance wireless data transmission over 13km+, tested in the field. As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE220 uses MAXtream TDMA Technology. CPE220 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control. A user-friendly web-based management system allows professionals to do more specific configurations. It has a 01-year warranty.
Warranty
Warranty 1 Year
